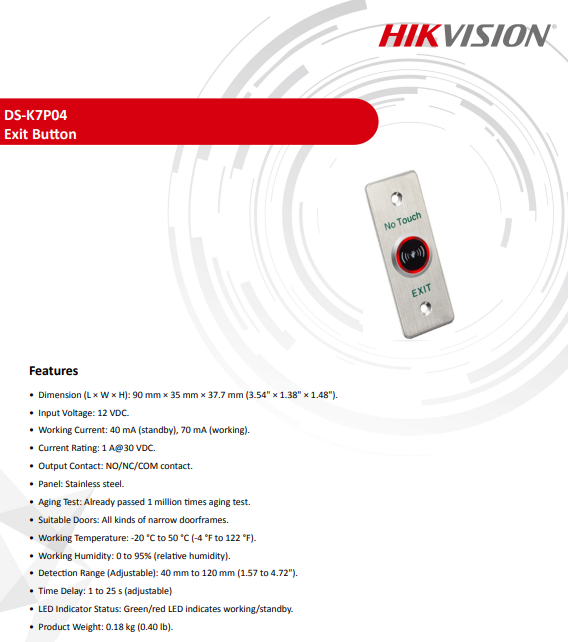

Features
ㆍ Dimension (L x W x H): 90 mm x 35 mm x 37.7 mm (3.54″ x 1.38″ x 1.48″).
ㆍInput Voltage: 12 VDC.
ㆍWorking Current: 40 mA (standby), 70 mA (working).
ㆍ Current Rating: 1 A@30 VDC.
ㆍ Output Contact: NO/NC/COM contact.
ㆍPanel: Stainless steel.
ㆍ Aging Test: Already passed 1 million times aging test.
ㆍSuitable Doors: All kinds of narrow doorframes.
ㆍWorking Temperature: -20 ‘C to 50 *C (-4 *F to 122 “F).
ㆍ Working Humidity: 0 to 95% (relative humidity).
ㆍDetection Range (Adjustable): 40 mm to 120 mm (1.57 to 4.72″).
ㆍ Time Delay: 1 to 25 s (adjustable)
ㆍLED Indicator Status: Green/red LED indicates working/standby.
ㆍProduct Weight: 0.18 kg (0.40 Ib).
คุณสมบัติ
• ขนาด (ยาว × กว้าง × สูง): 90 มม. × 35 มม. × 37.7 มม. (3.54″ × 1.38″ × 1.48”)
• แรงดันไฟฟ้าขาเข้า: 12 VDC.
• กระแสไฟฟ้าทำงาน: 40 mA (สแตนด์บาย), 70 mA (กำลังทำงาน)
• กระแสไฟ 1 A@30 VDC.
• หน้าสัมผัสเอาต์พุต: หน้าสัมผัส NO/NC/COM
• แผง: สแตนเลส.
• การทดสอบความชรา: ผ่านการทดสอบความชราถึง 1 ล้านครั้งแล้ว
• ประตูที่เหมาะสม: วงกบประตูแคบทุกชนิด
• อุณหภูมิในการทำงาน: -20 °C ถึง 50 °C (-4 °F ถึง 122 °F)
• ความชื้นในการทำงาน: 0 ถึง 95% ;ƌĞůĂƟĀĞ ความชื้น)
• ช่วงการวัด (ปรับได้): 40 มม. ถึง 120 มม. (1.57 ถึง 4.72 นิ้ว)
• การหน่วงเวลา: 1 ถึง 25 วินาที (ปรับได้)
• สถานะไฟแสดงสถานะ LED: LED สีเขียว/แดงบ่งชี้การทำงาน/สแตนด์บาย
• น้ำหนักผลิตภัณฑ์: 0.18 กก. (0.40 ปอนด์)
